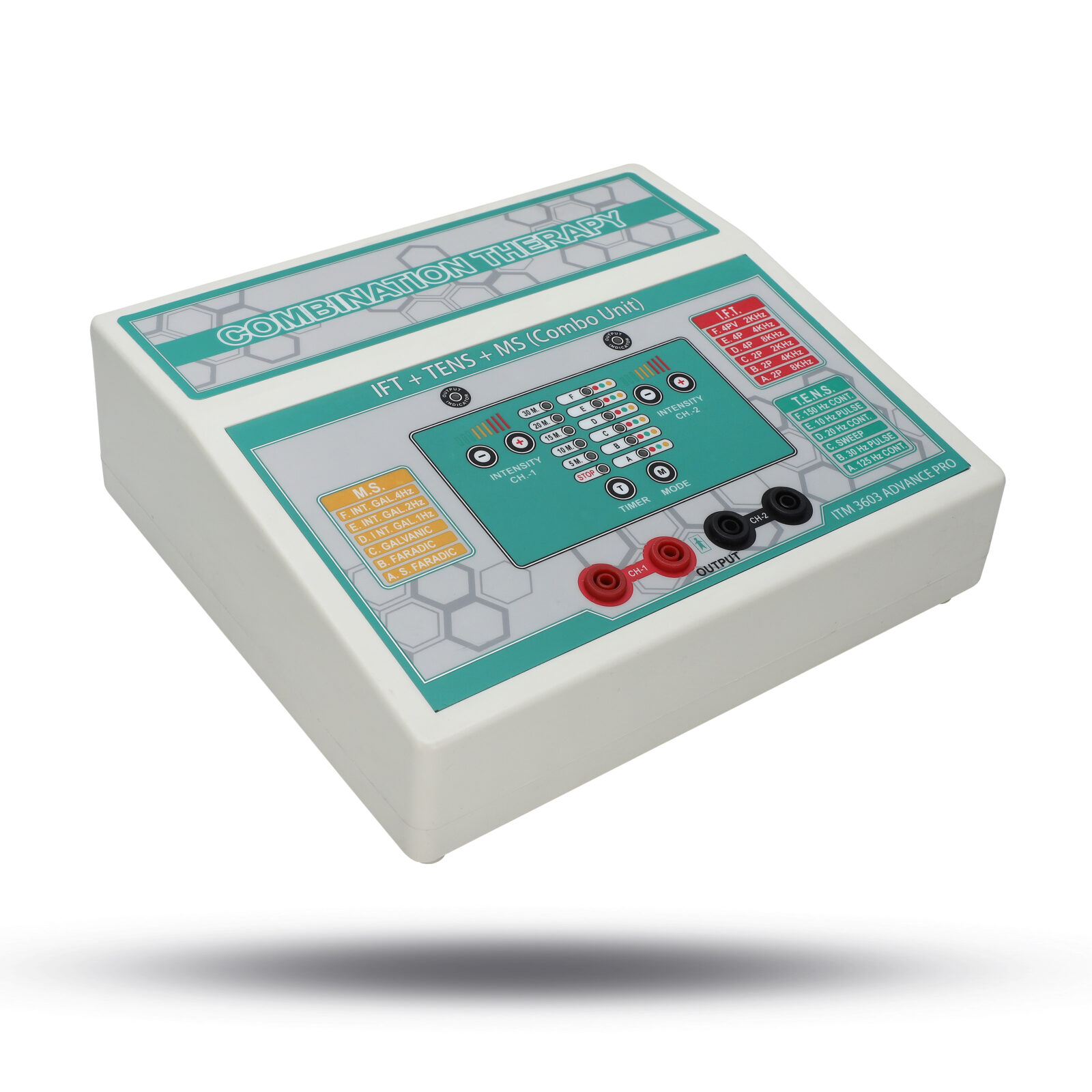

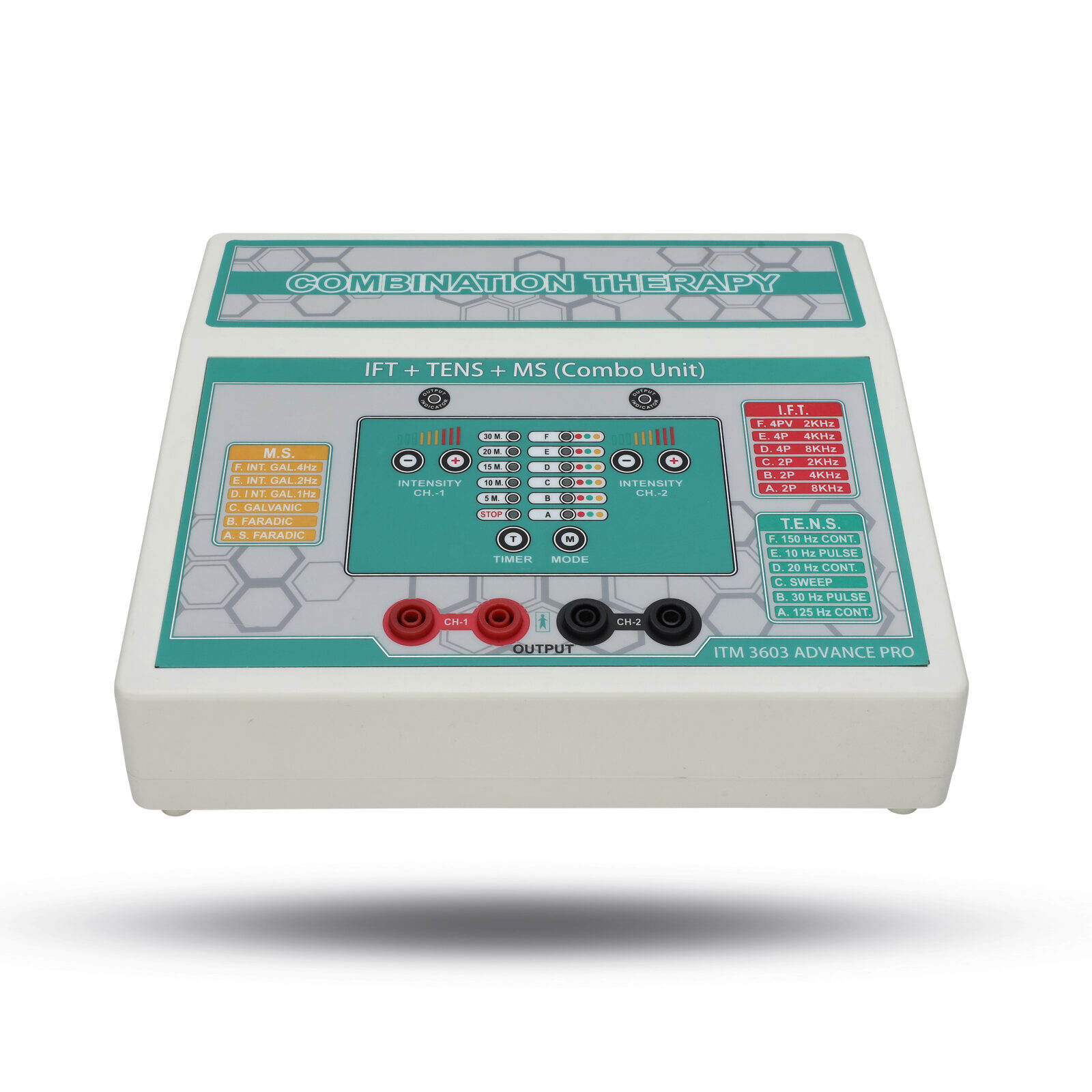

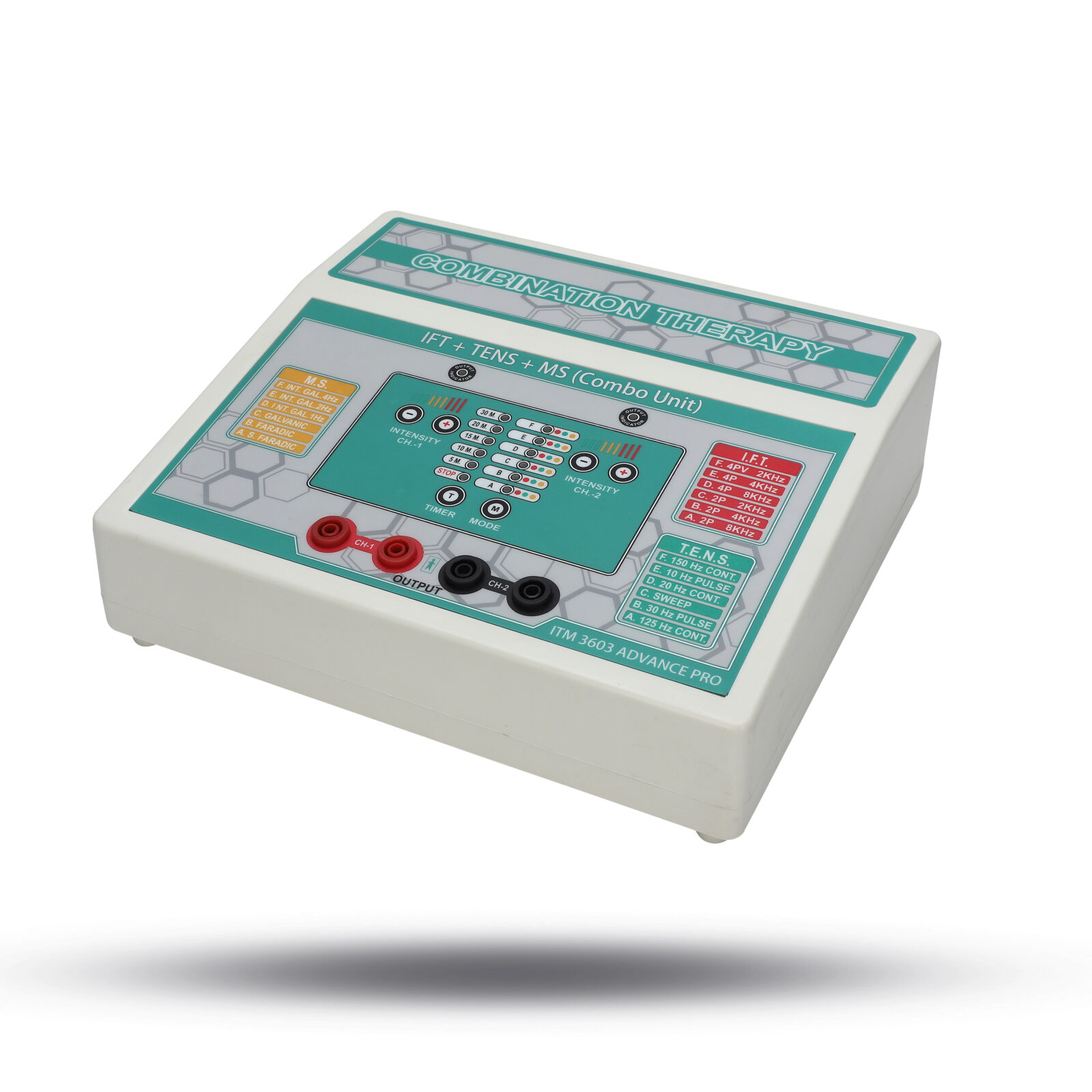

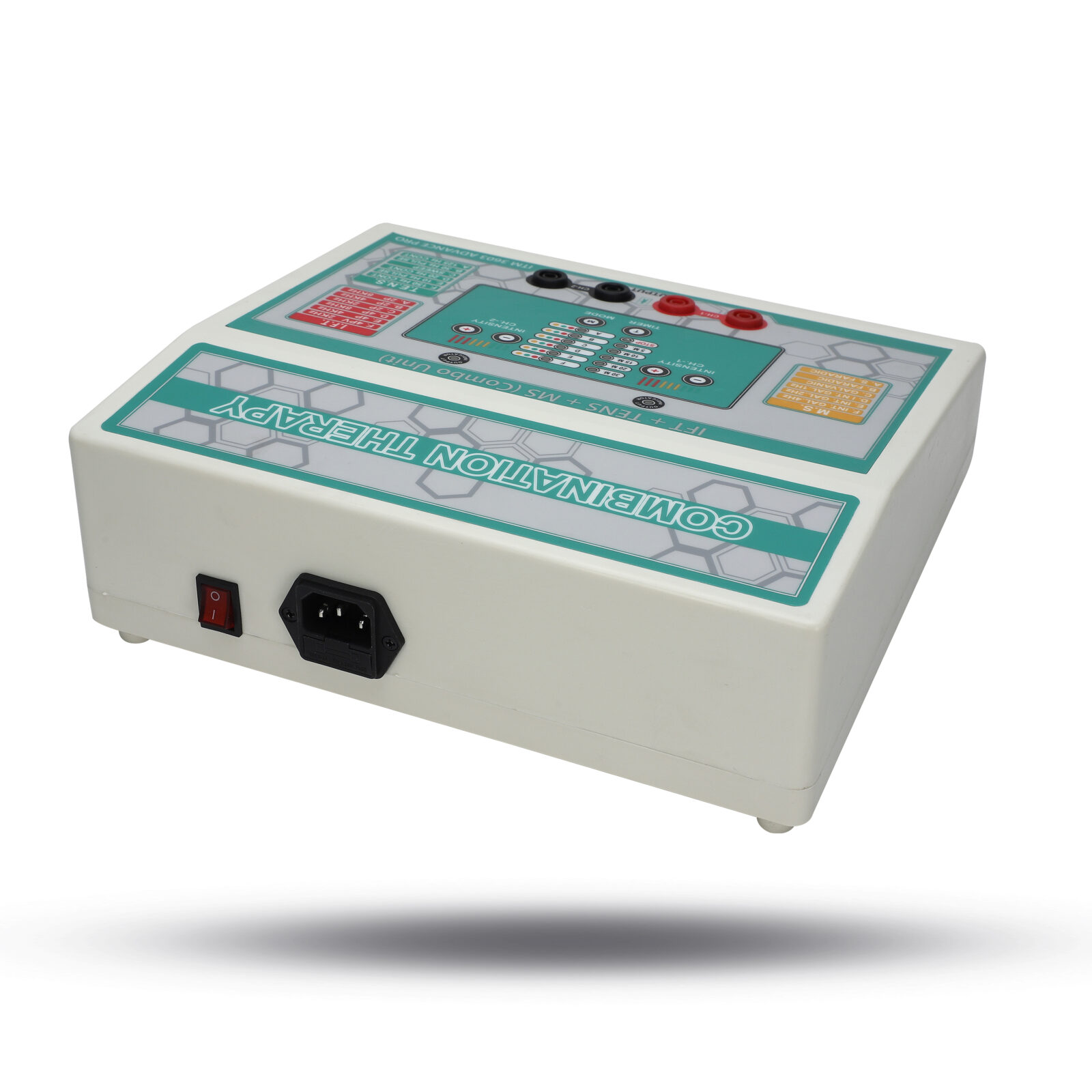

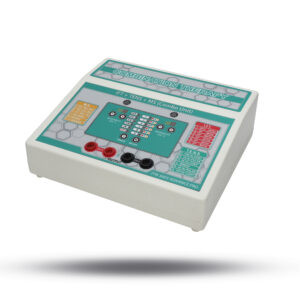

ITM 3603 Advance Pro Combination Therapy Machine (IFT + TENS + MS)

Comprehensive Multi-Current Electrotherapy for Advanced Pain Relief & Muscle Rehab

Streamline your clinical setup and deliver versatile therapeutic treatments with the ITM 3603 Advance Pro Combination Therapy Machine. Engineered as an all-in-one desktop workstation, this clinical-grade device integrates three of the most effective electrotherapy modalities used in physical therapy today: Interferential Therapy (IFT), Transcutaneous Electrical Nerve Stimulation (TENS), and Muscle Stimulation (MS).

With its dual-channel independent output architecture and clean, color-coded LED control interface, this system enables practitioners to target complex nerve pathways, alleviate severe chronic pain, and facilitate targeted muscle re-education within a single, space-saving unit.

Modality Breakdown: Three Units in One

The ITM 3603 Advance Pro features an extensive matrix of pre-configured waveforms, tailored to treat a diverse range of patient requirements:

1. I.F.T. (Interferential Therapy) Modes

Utilizes deep-penetrating, mid-frequency currents that cross within the tissue to reduce deep joint and skeletal pain.

• 4PV / 4P Modes (4-Pole Vector & 4-Pole): Formulated at $2\text{ kHz}$, $4\text{ kHz}$, and $8\text{ kHz}$ carrier frequencies for multi-directional, deep-tissue pain relief.

• 2P Modes (2-Pole): Concentrated currents at $2\text{ kHz}$, $4\text{ kHz}$, and $8\text{ kHz}$ targeting highly localized structural pain.

2. T.E.N.S. (Transcutaneous Electrical Nerve Stimulation) Modes

Targets sensory nerve pathways to achieve rapid pain gating and block immediate distress signals to the brain.

• Includes specialized continuous settings (150 Hz CONT., 20 Hz CONT., 125 Hz CONT.) and burst/pulse profiles (10 Hz PULSE, 30 Hz PULSE).

• Built-in SWEEP mode automatically shifts frequencies to eliminate nerve accommodation and maintain treatment efficacy.

3. M.S. (Muscle Stimulator) Modes

Engineered to restore neuromuscular function, combat muscle atrophy, and improve regional blood circulation.

• S. FARADIC / FARADIC: Classic waveforms used for stimulating innervated muscle groups and diagnosing nerve damage.

• GALVANIC: Constant direct current designed for iontophoresis and treating denervated tissues.

• INT. GAL. (Interrupted Galvanic): Pulse cycles calibrated at 1 Hz, 2 Hz, and 4 Hz for precise muscle twitch testing and gentle thermal therapy stimulation.

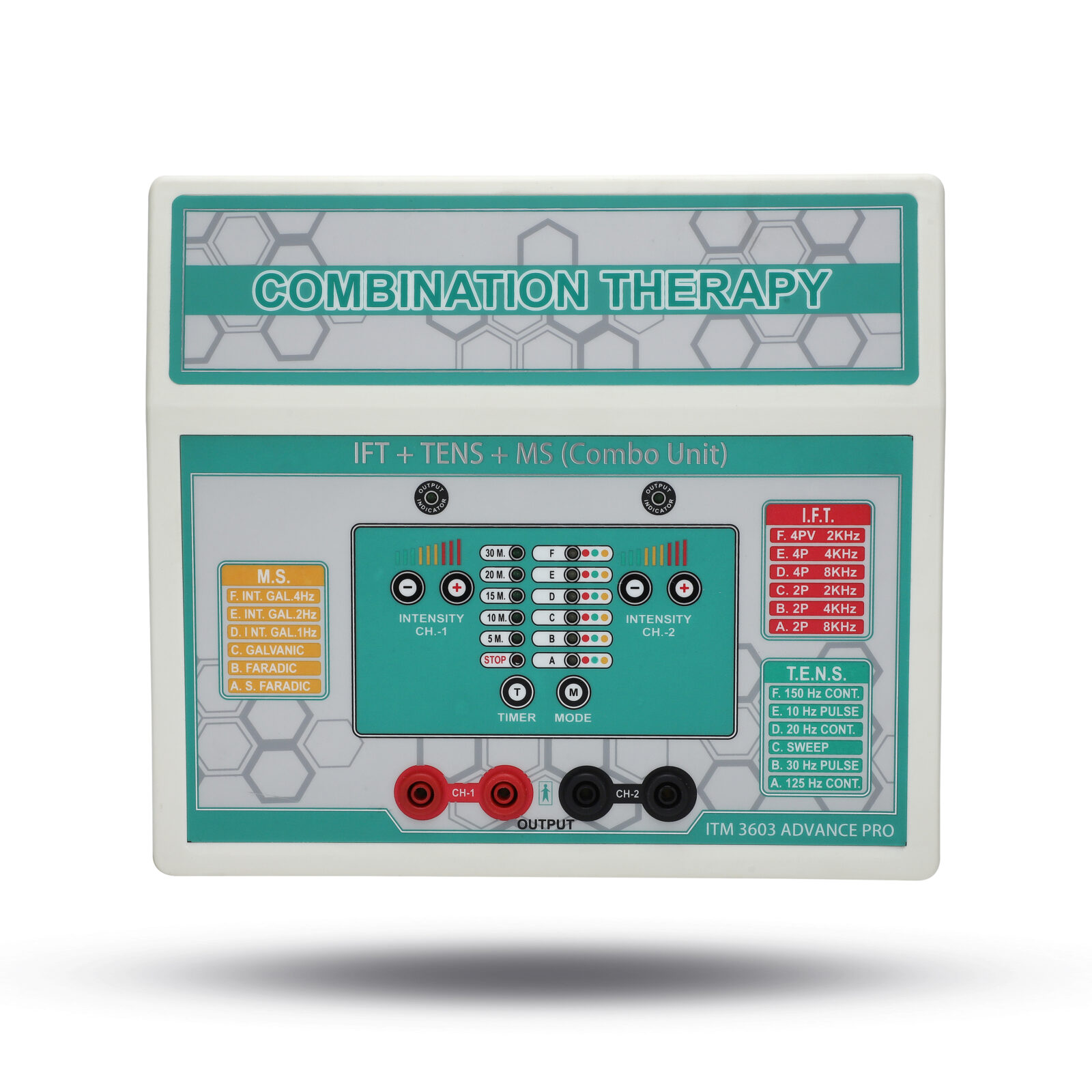

Key Features & Control Panel Breakdown

1. Dual-Channel Independent Intensity Layout

The unit provides two dedicated, isolated output zones (CH-1 and CH-2) controlled by responsive tactile membrane switches:

• Digital Intensity Increments: Tap the (+) and (-) buttons to scale up or down smoothly.

• LED Bar Indicators: Multi-segment, color-coded LED level meters display real-time output power levels for each channel instantly.

• Output Status Indicators: Top-mounted notification LEDs illuminate to show active current transmission.

2. Master Mode & Timer Matrix

• Central Indicator Tree (A through F): Easily switch between modes utilizing the central MODE (M) key. High-visibility multi-color LEDs correspond directly to the side parameter reference charts.

• Integrated Countdown Timer: Cycle through dedicated time blocks (5 M., 10 M., 15 M., 20 M., 30 M.) using the TIMER (T) button. The system features a hard-stop safety feature (STOP LED) that automatically neutralizes all active currents the moment the timer hits zero.

3. Heavy-Duty Hardware Safety Ports

The lower deck features color-coded, structural safety socket terminals. CH-1 (Red) and CH-2 (Black) are explicitly isolated to ensure completely stable delivery, preventing power cross-talk or unexpected current spikes during high-intensity clinical rehabilitation.

Technical Specifications

Primary Therapeutic Applications

• Post-Surgical Musculoskeletal Rehab: Ideal for retraining muscles following ACL surgeries, joint replacements, or spinal procedures using targeted Faradic and Galvanic modes.

• Chronic Pain Alleviation: Exceptionally effective against persistent sciatica, lumbar spondylosis, osteoarthritis, and severe neck spasms utilizing multi-frequency IFT.

• Sports Injury Recovery: Accelerates recovery time for severe muscle strains, acute ankle sprains, and structural ligament swelling through TENS sweep routines.

• Neuromuscular Atrophy Prevention: Safely stimulates immobilized or partially paralyzed muscle structures to help maintain mass and tone during long-term bed rest.

Why Choose the ITM 3603 Advance Pro?

Unmatched Treatment Flexibility

Instead of purchasing separate, bulky medical devices, the ITM 3603 Advance Pro delivers three entirely distinct modalities under a singular, rugged chassis. Transitioning from intense pain management (IFT) to muscle re-education (MS) requires only a single push of the Mode button.

Safe, Drug-Free Clinical Performance

Designed specifically to stand up to the rigorous daily rotation of a busy physiotherapy clinic, this device provides non-invasive, localized treatment paths that vastly reduce a patient’s dependence on traditional oral analgesics.
