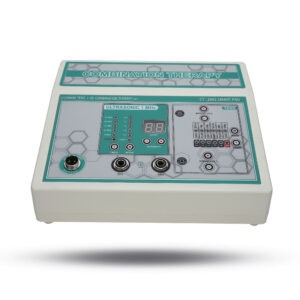

CT:2602 Smart Pro 2-Channel TENS and Ultrasound Combination Machine

Integrated Electrotherapy & Acoustic Healing for Target Pain Management

Maximize your clinical capabilities or elevate your home rehabilitation routine with the CT:2602 Smart Pro Combination Therapy Unit. This medical-grade device seamlessly combines two of the most trusted modalities in physiotherapy: Transcutaneous Electrical Nerve Stimulation (TENS) and 1 MHz Ultrasound Therapy.

By delivering these therapies independently or simultaneously as a unified “combination” treatment, the CT:2602 speeds up soft tissue repair, breaks down deep muscle knots, and provides rapid relief for stubborn acute and chronic pain conditions. Housed in a space-saving desktop chassis with clean, intuitive control banks, it offers a highly optimized, drug-free path to recovery.

Modality Breakdown: Synergy in Action

1. Dedicated 1 MHz Ultrasound Therapy

Engineered for deep-tissue penetration ($3\text{ cm}$ to $5\text{ cm}$ beneath the skin), the ultrasound module targets major muscle groups, ligaments, and joints.

• Continuous Waveform (CONT.): Delivers constant acoustic energy to create deep thermal heating, which relaxes tight muscles, increases local blood circulation, and eases joint stiffness.

• Pulsed Duty Cycles (1:1, 1:3, 1:5, 1:7, 2:0): Emits rapid bursts of sound waves for non-thermal mechanical healing. These micro-vibrations stimulate cellular repair, reduce localized inflammation, and accelerate the healing of soft tissue injuries.

2. Dual-Channel TENS (Transcutaneous Electrical Nerve Stimulation)

Equipped with two independent channels (CH-1 and CH-2), this station blocks immediate pain signals from reaching the brain while stimulating the release of natural endorphins.

• Features six specialized settings ranging from high-frequency sensory pain gating (200 Hz CONT., 125 Hz CONT.) to low-frequency chronic relief (10 Hz PULSE, 20 Hz CONT., 30 Hz PULSE).

• Built-in SWEEP (10-150 Hz) mode continually shifts the frequency spectrum automatically, preventing nerve habituation (accommodation) and ensuring consistent relief throughout long sessions.

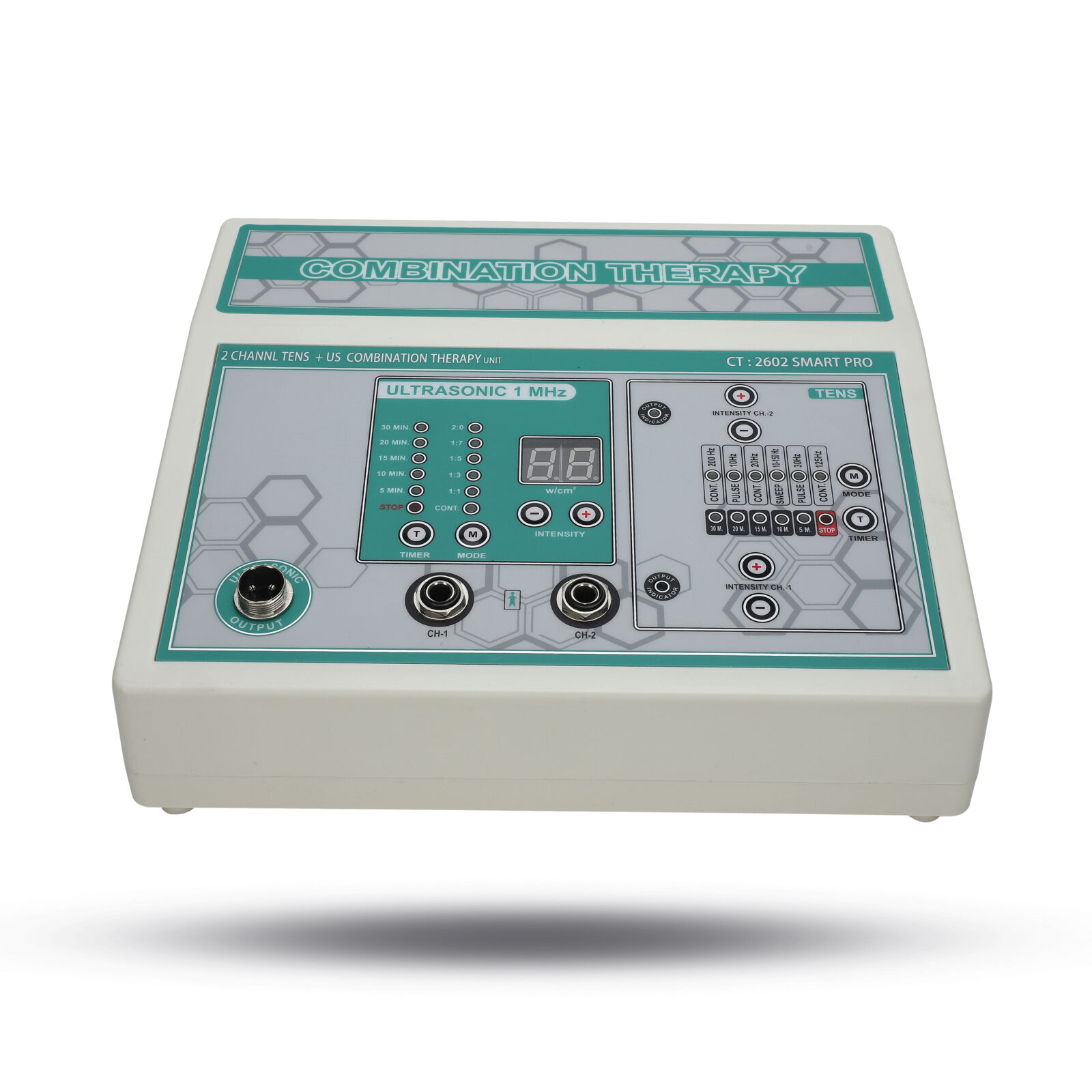

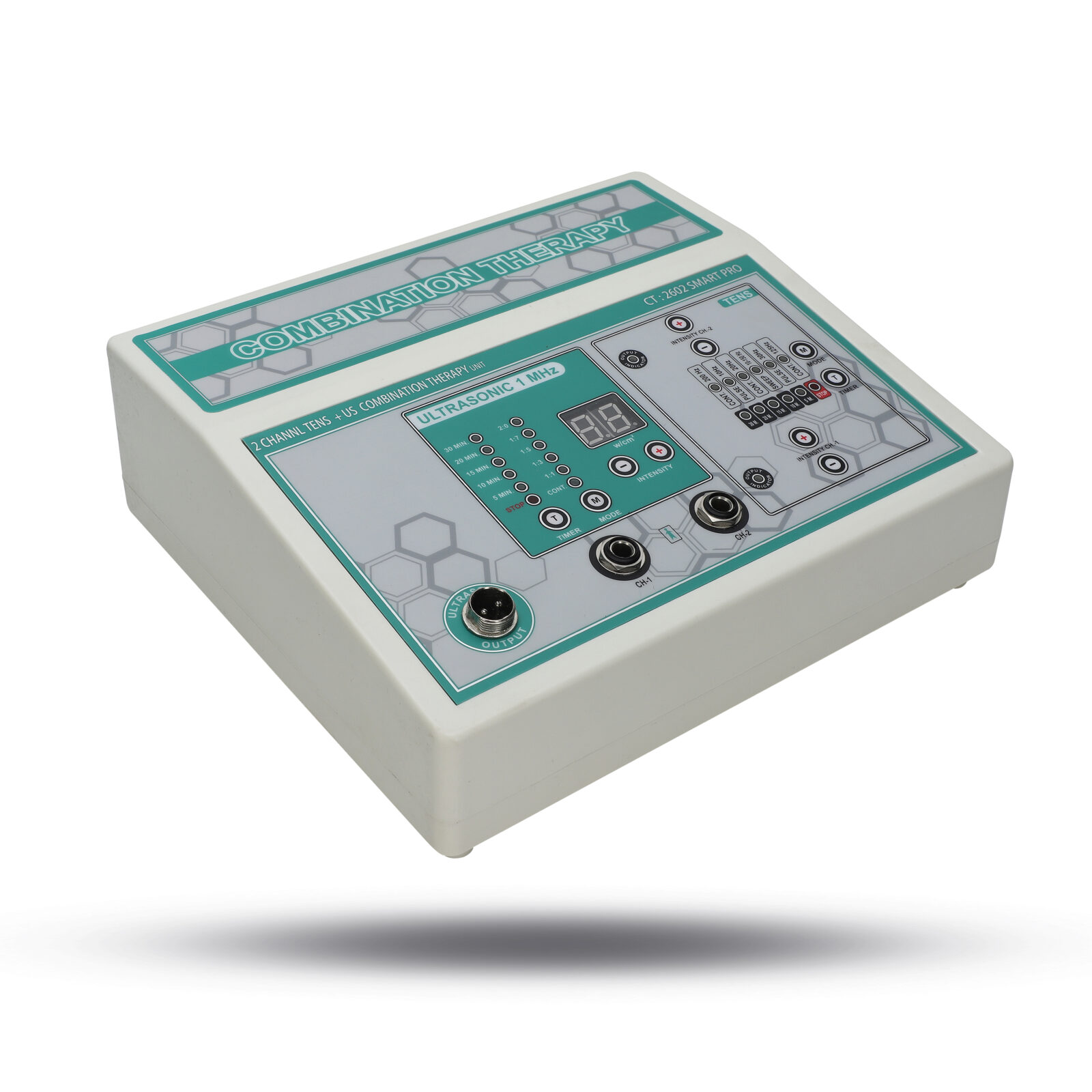

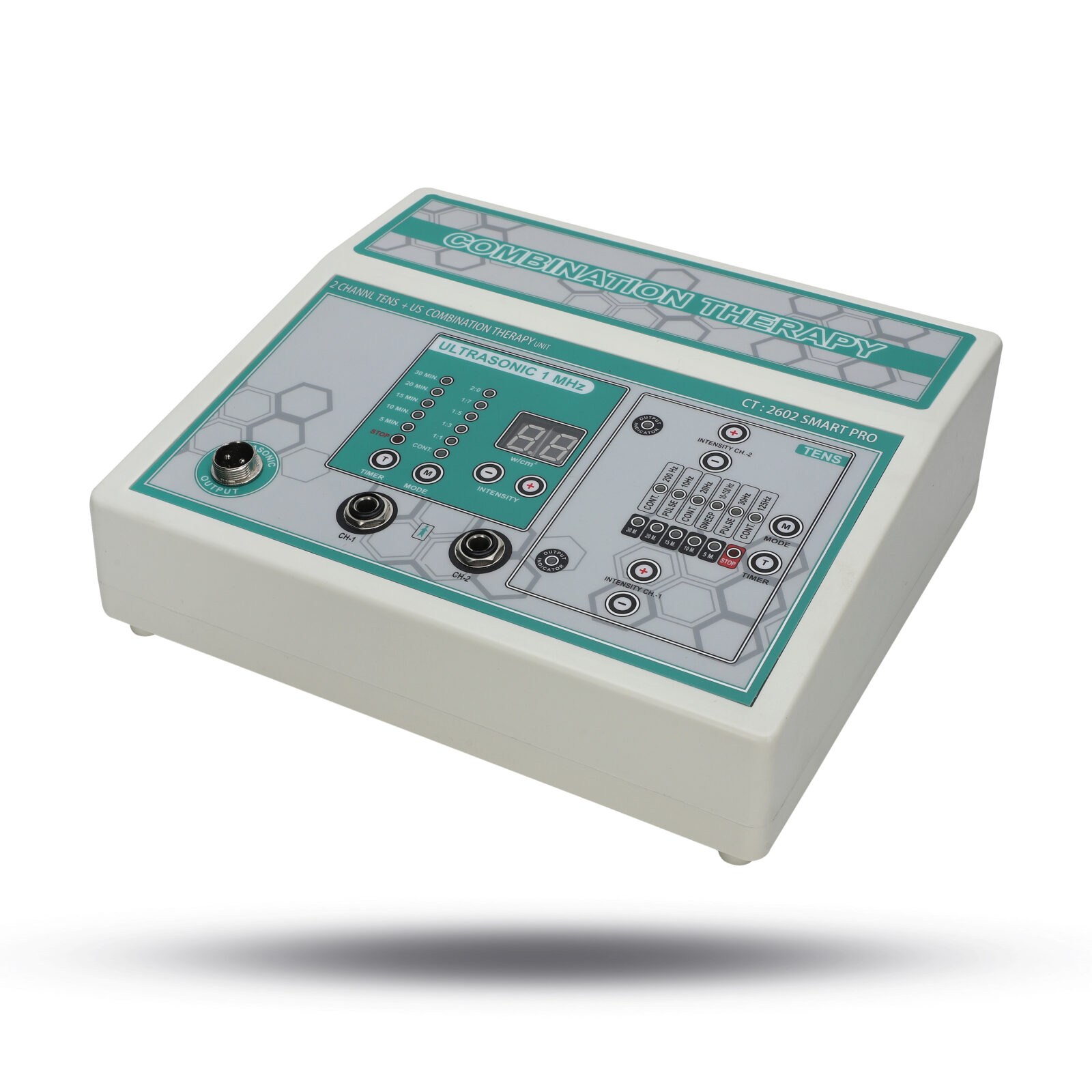

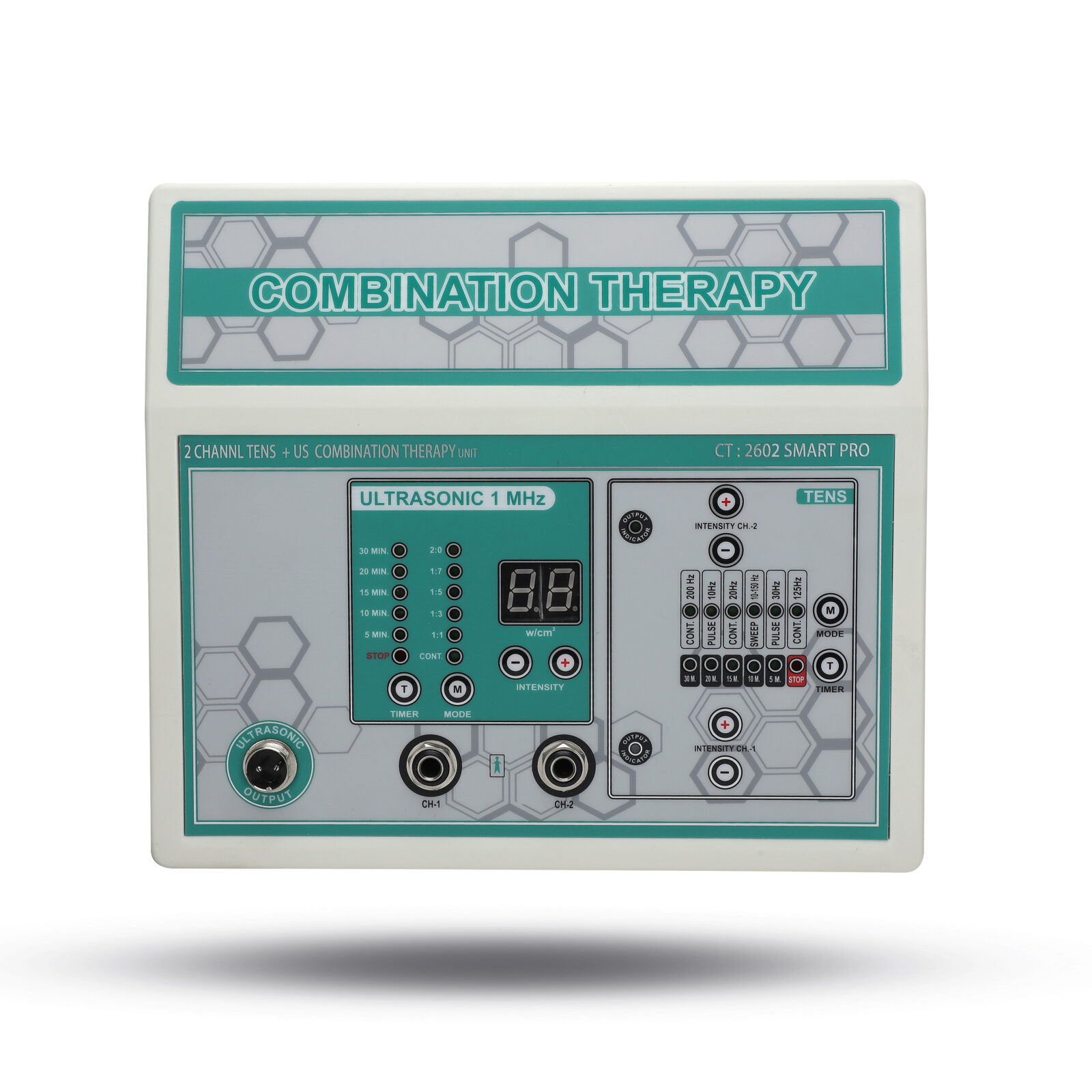

Key Features & Interface Breakdown

1. Central Ultrasound Command Center

• Digital $W/\text{cm}^2$ Display: A crisp two-digit display shows the precise acoustic power density output being delivered.

• Digital Intensity Keys: Smoothly increase or decrease ultrasound output using tactile (+) and (-) membrane buttons.

• Mode & Timer Selection: Features a multi-step countdown selector (5 Min. to 30 Min.) and duty cycle indicators managed by quick-response TIMER (T) and MODE (M) toggles.

2. Dual-Channel TENS Interface

• Isolated Intensity Regulators: Features separate digital adjustment keys for INTENSITY CH-1 and INTENSITY CH-2, backed by upper and lower active output indicator lights. This allows you to treat two different areas with entirely different power thresholds safely.

• Horizontal Status Strip: Visually tracks active TENS programs and matching countdown timers (5 M. through 30 M.) leading down to an automated STOP safety node.

3. Structural Output Bay

The bottom panel houses rugged, hardware-isolated connector ports:

• One heavy-duty circular ULTRASONIC OUTPUT port on the left for the ultrasound transducer handle.

• Two dedicated pin-socket terminals (CH-1 and CH-2) in the center for standard electrotherapy lead wires.

Technical Specifications

Primary Therapeutic Applications

• Deep-Tissue Musculoskeletal Conditions: Highly effective for relieving chronic low back pain, shoulder impingements, frozen shoulder, and hip joint discomfort.

• Accelerated Sports Injury Healing: Ideal for managing acute ankle sprains, hamstring pulls, tennis elbow, and patellar tendonitis.

• Post-Surgical Scar Remodeling: Combines ultrasound micro-vibrations with TENS to break down post-operative scar tissue and restore mobility safely without pain spikes.

• Myofascial Trigger Points: Quickly relaxes painful, rigid muscle knots and reduces localized muscle spasms.

Why Choose the CT:2602 Smart Pro?

True Multi-Modality Value

Instead of investing in two standalone systems, the CT:2602 Smart Pro delivers a comprehensive, double-threat solution within a singular desktop footprint. You can run individual TENS treatments, standalone ultrasound sessions, or utilize both on a single patient for enhanced clinical results.

Safe & Stable Operation

Designed to withstand the continuous workload of a busy physical therapy clinic, the unit features internal electronic voltage stabilization and automatic auto-stop safety triggers that instantly terminate electrical and acoustic currents the moment a treatment timer runs out.
